Master Standard Soft Top Jaws for 15" dia. Chucks with 1.5x60 deg serrations & 22 mm (0.87") slot width

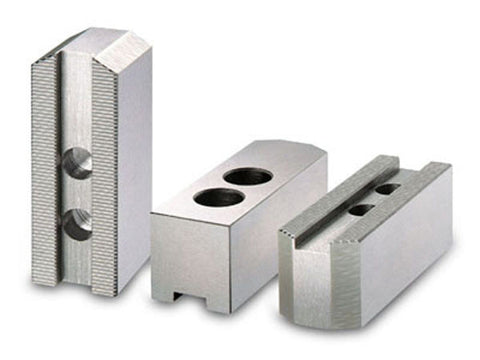

Master Standard Soft Top Jaws
- Set of 3 Soft Steel Jaws
- 1.5mm x 60 deg. Standard serrations
- Material: S45C Steel
Dimensions : See Illustration
- S-1 : 165 mm (6.50 in)
- S-2 : 62 mm (2.44 in)
- S-3 : 62 mm (2.44 in)
- S-4 : 22 mm (0.87 in) Groove width
- S-5 : 8 mm (0.31 in)
- S-6 : 37 mm (1.46 in)
- S-7 : 43 mm (1.69 in)
- S-8 : 85 mm (3.35 in)
- S-9 : M20
- Serration Pitch : 1.5 x 60
- Weight : 12.6 kg (27.78 lbs)
